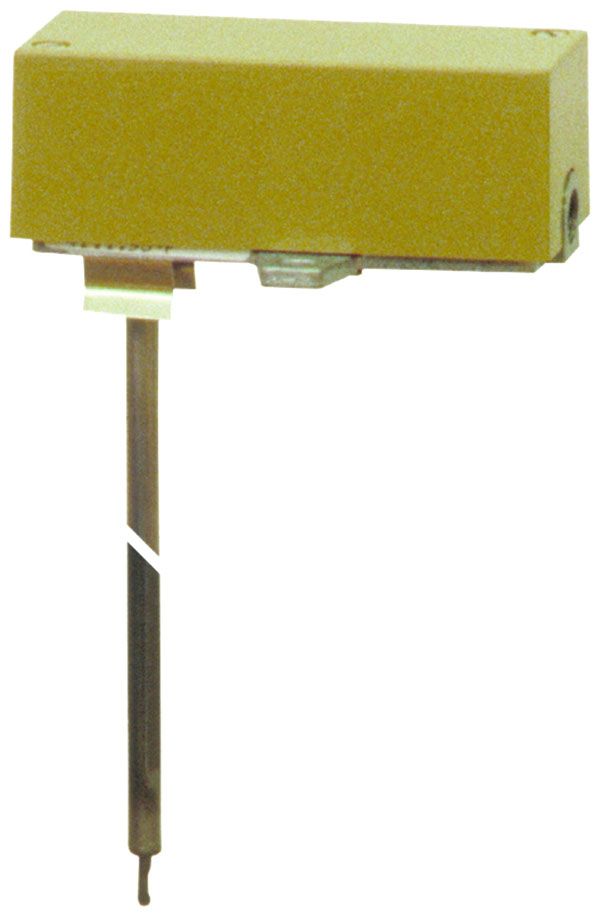

Pneumatic temperature transducer for duct fitting, centair
TUP 214...262F001
How energy efficiency is improved
Precise measurement of temperature in pneumatic installations for optimum control of HVAC systems
Jellemzők
-
Pneumatic temperature measurement and/or regulation of liquid or gaseous media in tanks, boilers or piping in conjunction with pneumatic control facilities (centair)
-
Immersion stem made of nickel filled with expansion fluid
-
Converts the measured temperature into a pneumatic standard signal of 0.2…1.0 bar
-
Compressed air connections with Rp 1/8″ female thread
-
Nozzle-ball system
