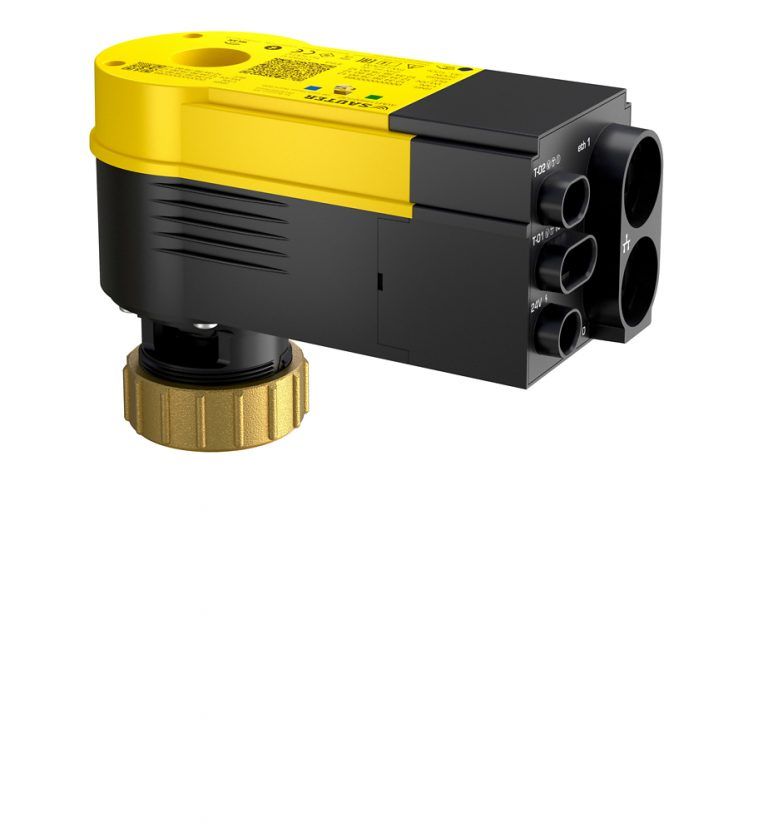

Smart Actuator for 2- and 3-way valves, BACnet/IP
AVM115SAF332
How energy efficiency is improved
Valve actuator with integrated, freely programmable controller and cloud connection in one device. Can be integrated into a local building automation system via BACnet or into the SAUTER Cloud via MQTT. Communicates via Ethernet, Wi-Fi and Bluetooth. Automatic adaptation to the valve stroke, precise activation and high energy efficiency with minimal operating noise and smart functions
Jellemzők
-
Smart Actuator as an intelligent IoT solution for autonomous control of heating and air-conditioning applications in smart buildings
-
Ready-made HVAC standard applications from SAUTER from the App Store allow efficient installation and commissioning of small systems
-
Applications are selected from the library via mobile app and installed on the Smart Actuator
-
Ethernet switch, Wi-Fi interface and Bluetooth LE for flexible device communication and system integration
-
BACnet/IP communication (EN ISO 16484‑5) via Ethernet or Wi-Fi interface
-
Convenient commissioning, parameterisation and remote access to the system via a mobile app or with the SAUTER CASE engineering software
-
As an IoT device, the cloud connection for remote access takes place via MQTT using TLS encryption
-
Enables creation of Smart Actuator networks with distributed intelligence
-
Optionally, the Smart Actuator can be used flexibly in BA networks due to free programmability via CASE Suite
-
Real-time clock for calendar functions and time programmes
-
Two universal I/Os for connecting external sensors and actuators
-
Direct connection of up to two room operating units
-
Flexibly expandable with up to four I/O modules for comprehensive control tasks
-
Pre-assembled cables with mechanically and colour-coded connectors allow fast, error-free wiring for Smart Actuator and SAIO 100 I/O modules
-
Toolless assembly by means of automatic valve stem connection and brass cap nut
-
BLDC motor technology enables extensive diagnostic functions
-
Intelligent stroke adaptation and detection incl. feedback signal
-
Electronic, torque-dependent cut-off
-
Disengageable gear unit for manual adjustment and local priority operation
-
For activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series.
Can be combined with VDL valves using a mounting adapter
