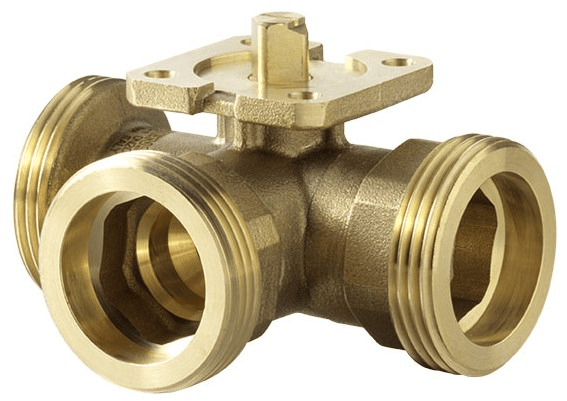

3-way change-over ball valve (T) with male thread, PN 40
BKTA
How energy efficiency is improved
Efficiency means precise changeover with minimum leakage
Jellemzők
-
3-way change-over ball valve with T-bore for use in closed circuits in heating, ventilation and air conditioning systems
-
For changing over volume flows in combination with valve actuators AKM 105(S), 115(S) and AKF112, 113(S).
-
Fast changeover in 6 s with valve actuator AKM115SF152
-
Low torque due to collar mounted on O-ring
-
Spindle with friction ring and double O-ring seal
-
Ball valve with male thread as per ISO 228-1 G..B
-
Body made of dezincification-resistant cast brass
-
Ball made of dezincification-resistant brass, chrome-plated and polished surface
-
Strainer and screw fitting available as accessories
-
Water quality as per VDI2035
-
French drinking water approval ACS
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
BKTA: 3-way change-over ball valve (T) with male thread, PN 40
pdf : 2 MB
pdf
Kugelhahn, VKAA/BKTA
pdf : 1 MB
pdf
BKTA: 3-way change-over ball valve (T) with male thread, PN 40
PDF : 229 KB
PDF
Poster valves and actuators - 2020
pdf : 1 MB
pdf
SAUTER ball valve and actuator
pdf : 472 KB
pdf
Valves and actuators
pdf : 3 MB
pdf
