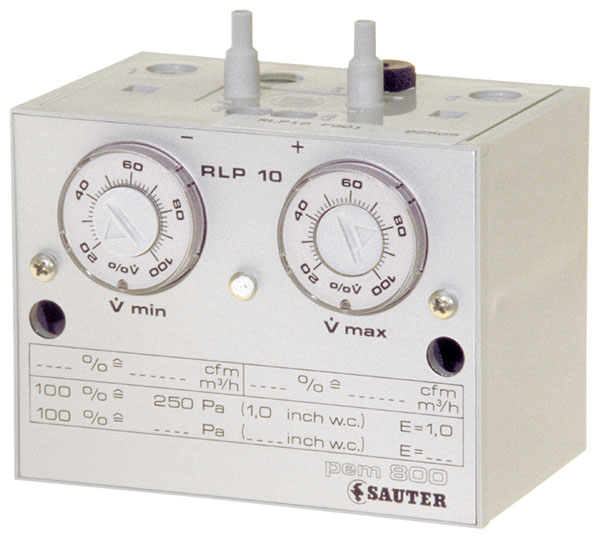

Pneumatic volume-flow controller
RLP 10
How energy efficiency is improved
Allows precise measuring of volume flows to optimise energy consumption in ventilation systems
Jellemzők
-
Suitable for supply and return-air control in single rooms or duct pressures
-
Controls constant, switchable or variable air volumes
-
Static differential pressure sensor with large measuring range (10…250 Pa)
-
Front plate printed with circuit diagrams for easy identification of the controller functions
-
Thermoplastic housing suitable for fitting to walls or DIN rail (EN 60715)
-
Compressed-air connection with Rp ⅛” female thread
-
Low-pressure connections designed as a dual-diameter connector for soft plastic tubing (internal diameter: 4 mm and 6 mm)
-
One input for command variables
-
Two outputs
-
Actual value of volume flow
-
Control of damper actuator
-
-
Two setpoint adjusters for maximum and minimum limitation of the volume flow
Szerelési útmutató
Szolgáltatási dokumentációk
MV RLP10F001, F905
pdf : 676 KB
pdf
Pneum. Geräte
pdf : 1 MB
pdf
incorporating clean rooms into a building management system
pdf : 929 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
