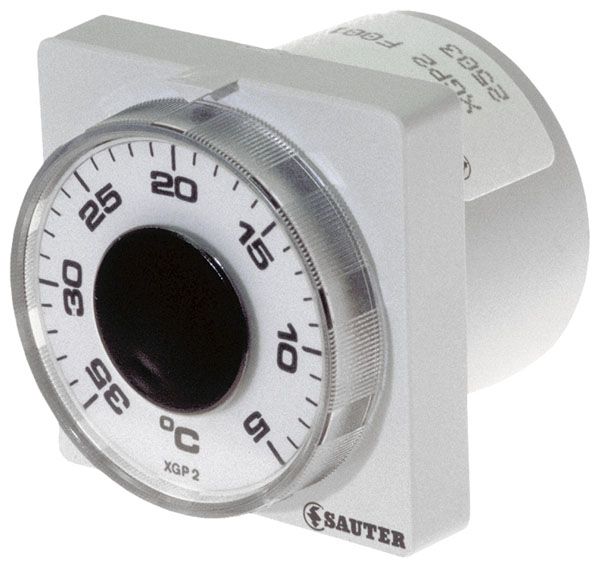

Pneum. control-pressure adjuster (small cap.)
XGP 2
Areas of application
Remote adjuster for setpoint adjustment of pneumatic controllers (e.g. Centair), plus manual control of small pneumatic control units.
Properties
Technical description
Remote adjuster for setpoint adjustment of pneumatic controllers (e.g. Centair), plus manual control of small pneumatic control units.
Properties
- Setting knob with interchangeable scales and 2 stops for limiting the setting range or locking the setting
- Suitable for fitting into panels or for recessed mounting
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
