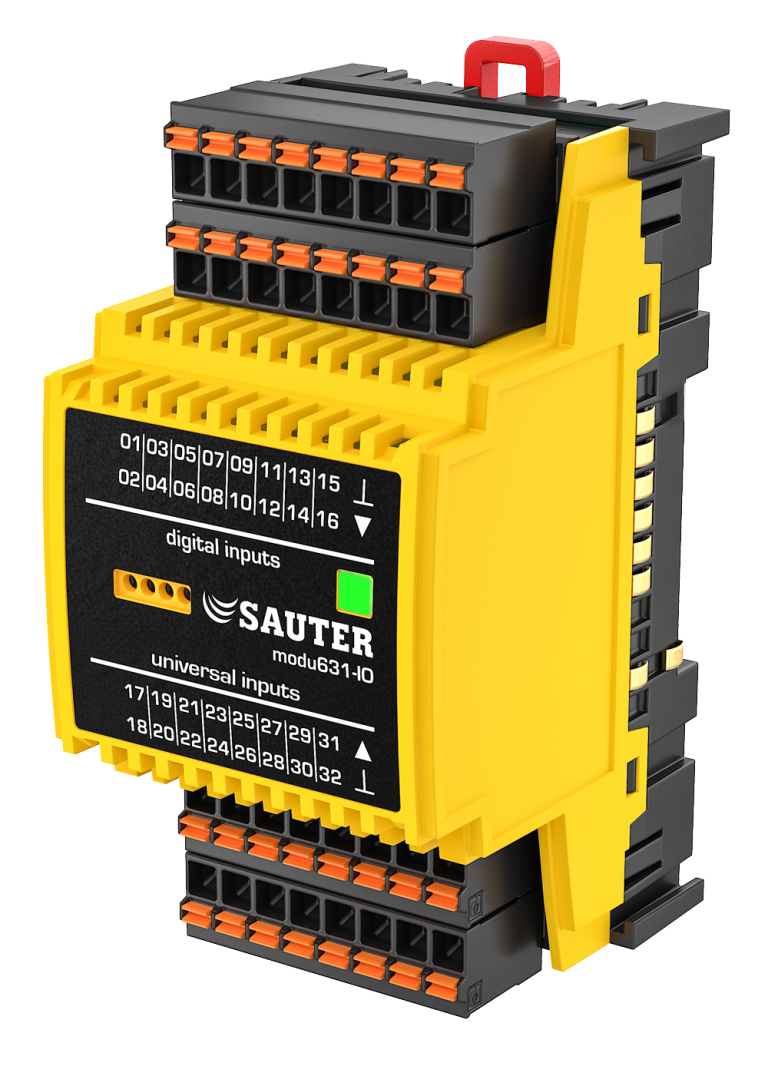

8 x UI (DI/CI/AI) and 8 x DI/CI I/O module, modu631-IO
EY6IO31
Jellemzők
-
Part of the SAUTER modulo 6 system family
-
Plug-in element for extending the modu660-AS and modu680-AS automation stations and modu6*2-LC link coupler
-
Receiving digital inputs (alarm, status or pulse counter) and analogue inputs (Ni/Pt1000, R, U) in operational systems, e.g. in HVAC
-
Eight digital inputs and eight universal inputs
-
Power supply from automation station (modu6**-AS), link coupler (modu6*2-LC) or supply module (modu601-LC)
-
Can be equipped with a local operating and indicating unit (modu600-LO)
kézikönyvek
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
SAUTER's modulo 6 System description
PDF : 2 MB
PDF
EY6IO31: modu631-IO - E
pdf : 476 KB
pdf
NEW
EY6IO..
pdf : 1 MB
pdf
MD_EY6IOxxF001-E
PDF : 302 KB
PDF
White Paper: Demand-Controlled Ventilation and Energy Efficiency
pdf : 1 MB
pdf
White Paper: IT Security in Building Automation
PDF : 732 KB
PDF
SAUTER EY-modulo 6
pdf : 5 MB
pdf
