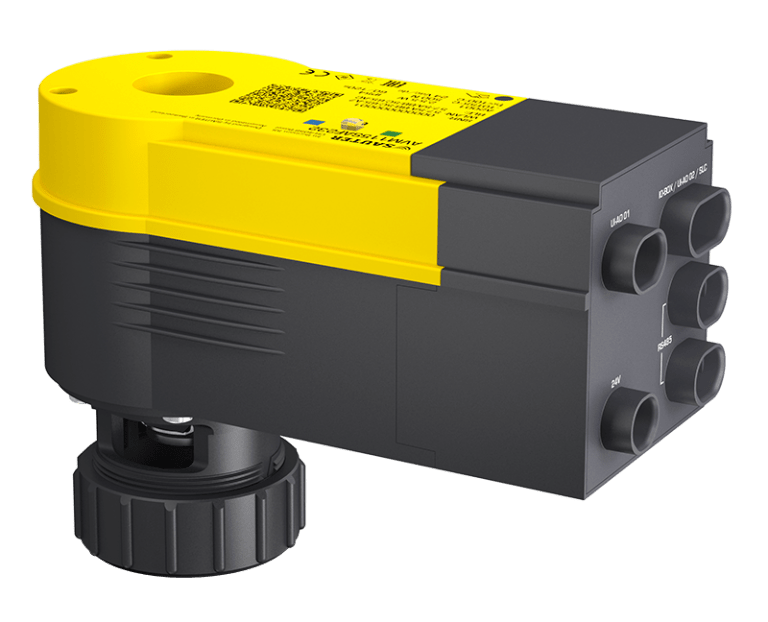

Smart actuator for globe valves

AVM 115SA

Smart actuator for globe valves

How energy efficiency is improved

Valve actuator with integrated, freely programmable controller and cloud connection in one device. Can be integrated into a local building automation system or the cloud via BACnet or MQTT Communicates via Wi-Fi and Bluetooth. Automatic adaptation to the globe valve, precise activation and high energy efficiency with minimal operating noise and smart functions.


Jellemzők

  • Smart actuator as intelligent IoT solution in smart buildings

  • IoT device with cloud connection via MQTT using TLS encryption

  • Predictive maintenance functions for plant monitoring

  • Enables creation of smart actuator networks with distributed intelligence

  • Autonomous control of heating and air-conditioning applications

  • Comprehensive application library available from the SAUTER cloud

  • BACnet, MQTT, Bluetooth LE and Wi-Fi interfaces for flexible system integration

  • Mobile app for easy commissioning and maintenance

  • Local memory for archiving historical data and BACnet Trend Logs

  • Real Time Clock for calendar functions and time programmes

  • Two universal I/Os for connecting external sensors and actuators

  • Direct connection of a room operating unit

  • Flexibly expandable with up to two smart actuator I/O modules for comprehensive control tasks

  • Pre-assembled cables, with colour- and mechanically-coded connectors, allow fast and error-free wiring

  • Activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series

  • Fitting without tools using a CuZn alloy screw ring

  • BLDC motor for advanced and reliable predictive maintenance

  • Autonomous adaptation to the valve stroke

  • Electronic force-dependent cut-off

  • Gear unit can be disengaged for manual adjustment
