Damper control unit
RCP 40
How energy efficiency is improved
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.
Areas of application
Activation of a temperature-dependent outside-air/return-air damper in combination with a transducer in ventilation and air-conditioning equipment. Control of the mixed-air temperature with two separate transducers, e.g. in winter operating mode.
Properties
Technical description
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.
Areas of application
Activation of a temperature-dependent outside-air/return-air damper in combination with a transducer in ventilation and air-conditioning equipment. Control of the mixed-air temperature with two separate transducers, e.g. in winter operating mode.
Properties
- Control of fresh air damper, depending on trapezium diagram for the outdoor temperature
- Housing, rack and front doors made of thermoplastic
- Suitable for wall or panel mounting
- Functional description and commissioning help inserted in front door

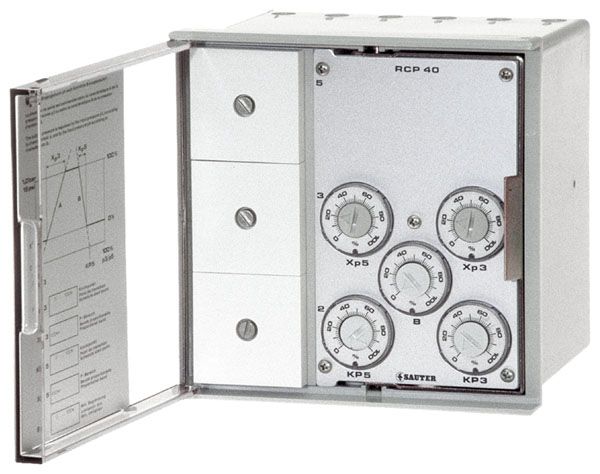

- Front panel with adjusters and 3 covered recesses for plug-in pressure gauge (XMP) making commissioning easier
- All settings very easy to make with a coin and % scale
- M4 measuring connections, control action adjustable (delivered with control action B)
- Compressed-air connections Rp 1/8" female thread
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Easily accessible adjusters for KP3+5 (schedule start point), XP3+5 (P range)
- Inputs for:
- control action
- Outputs for:
- output pressure for damper drive
Adatlapokat
Szerelési útmutató
Szolgáltatási dokumentációk
Nyilatkozat az anyagokról és a környezetről
RCP 40: Damper control unit
