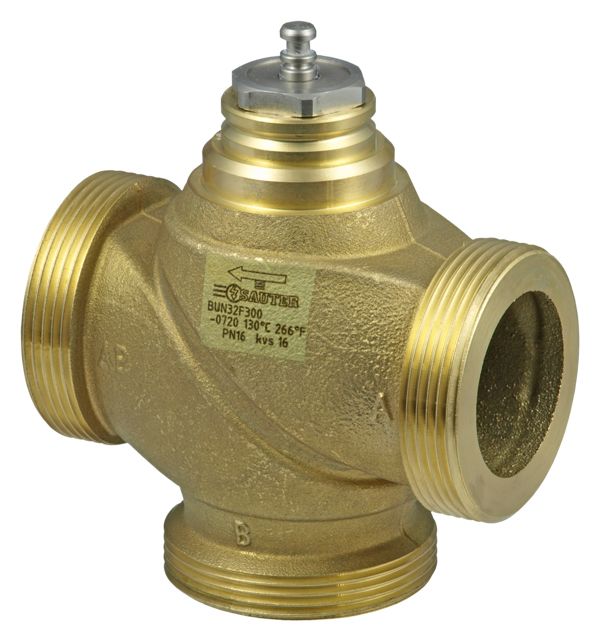

3-way valve with male thread, PN 16

BUN

3-way valve with male thread, PN 16

How energy efficiency is improved

Reliable actuation in efficient control systems


Jellemzők

  • Regulating valve free of silicone grease with male thread (DIN EN ISO 228-1) for cold and hot water in closed and open circuits

  • In combination with valve actuators AVM 105(S), 115(S), 321(S) and AVF 124, 125S as a control unit

  • Equal-percentage (F300) / linear (F200) characteristic, can be set with SUT valve actuators (SAUTER Universal Technology)

  • The valve is closed when the spindle is moved out

  • Can be used as a control valve or a distribution valve

  • Stainless-steel spindle

  • Valve body with valve seat made from dezincification-resistant cast brass (DZR)

  • Plug with glass-fibre-reinforced PTFE sealing ring made from dezincification-resistant cast brass (DZR)

  • Stuffing box with wiper ring made from dezincification-resistant cast brass (DZR) and double O-ring seal made from EPDM
