3-way unit valve, PN 16

BUL

3-way unit valve, PN 16

How energy efficiency is improved

Linear mixture and no loss through leakage in the control passage for energy-efficient regulation


Jellemzők

  • Ideally suited for AXF 217S, AXM 217(S), AXS 315S and AXT 301 unit valve actuators

  • Flat-sealing standard version or version with clamping ring screw fitting for pipe Ø 15 mm with DN 10

  • Valve with male thread as per DIN EN ISO 228-1, class B

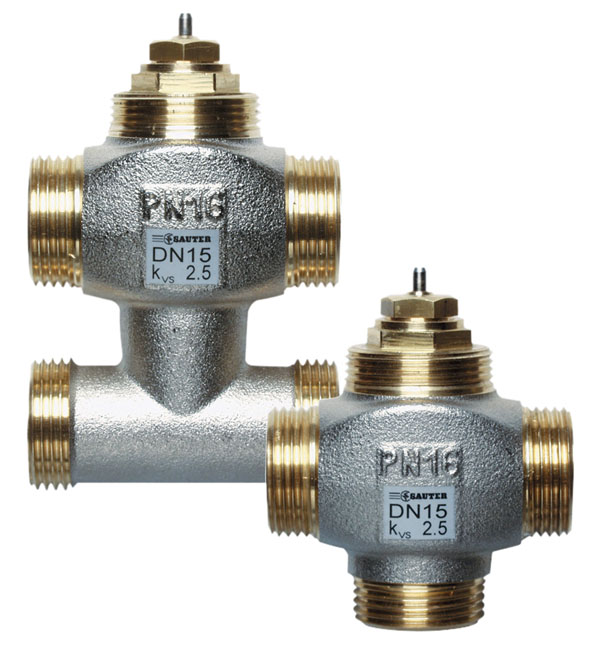

  • Special model for fan coil units with cast-on bypass T-piece

  • Control passage A–AB is closed when the spindle is moved in

  • Can be used as a control valve and, thanks to its tight-sealing third passage, as a distribution valve

  • Valve body made of nickel-plated cast brass

  • Plug with EPDM soft seal for control passage and mixing passage

  • Stainless-steel spindle

  • Stuffing box with double O-ring seal
